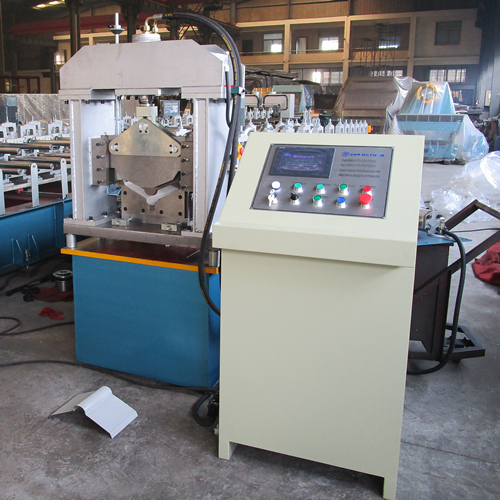

Metal Roll Forming Machine
Metal Roll Forming Machine Metal Roll Forming Machine Metal Roll Forming Machine Metal Roll Forming Machine Metal Roll Forming Machine

Metal Roll Forming Machine

25000-45000 USD ($)/Set

Product Details:

  • Computerized Yes
  • Supply Ability : 60 Set Per Year
  • Click to view more
X

Price And Quantity

  • 25000.00 - 45000.00 USD ($)/Set
  • 1 Set
  • 25000-45000 USD ($)/Set

Product Specifications

  • Yes

Trade Information

  • Telegraphic Transfer (T/T), Letter of Credit (L/C)
  • 60 Set Per Year
  • 60 Days
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Asia
  • All India

Product Description

The aid of our experts has assisted our company to offer supreme quality Metal Roll Forming Machine. Equipped with a hydraulic cutting system, this machine is well suited for making roof cladding. At our well developed production premises, the provided machine is manufactured with the aid of progressive techniques by our adept technocrats. Besides, the provided Metal Roll Forming Machine is widely appreciated for its strong construction and low noise generation.

Features:

  • Designed with a decoiler
  • Automatic operation
  • Excellent performance
  • High operational fluency

Metal Roll Forming Machine

Raw Material info:

  • Material:color steel sheet
  • Yield strength: 235Mpa
  • Thickness: 0.4-0.7mm
  • Forming Speed: 20m/min.
  • Main motor power: 7.5Kw(Depend on final design)
  • Hydraulic station power: About 2.2Kw (Depend on final design)
  • Manual decoiler Max. Capacity: 5000kgs
  • Power: 380V/3Phase/ 50Hz or customize

Machine components:

  • Decoiler (manual decoiler and hydraulic decoiler for option) : 1 set
  • Feeding & guiding device : 1 set
  • Main roll forming machine : 1 set
  • Hydraulic cutting system : 1 set
  • Controlling system : 1 set
  • Run out table (auto. Stacker for option) : 2 pcs

Machine Main Procss & Material

  • Electric elements: Mitsubishi PLC & transducer from Japan.
  • Anti-rust roller: No. 45 forged steel. Plated with 0.05mm hard chrome
  • Well resisting active shaft: High grade No. 45 carbon wrought steel. Solid Steel.
  • Cutter blade: Cr12 mould steel with quenched treatment
  • Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.

About us

We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.

  • Capacity: 12-15 sets/month
  • Delivery: in only 5-8 weeks for urgent order
  • Have our own tool center. 12 sets CNC machines.
  • Zhongyuan is a "All-in-house source" -from raw material to the final high-precision forming machine. We have our precise tooling center.
  • You can rely on our team!
  • We have engineers with experience more than 15 years in metal forming industry.


Get Free:

  • Provide profile drawing & design technical support FOR FREE!



Technical Details:

Item

Specification

Material

Type

 PPGI COILS

Thickness(mm)

0. 5 -0. 6

Yield strength(mpa)

235 -345

Roller material

45#Chrome steel

Forming speed(m/min)

About 20-25m/min


Speed adjusting mode

AC Frequency

Roller drive

Decelerating motor + Chain drive

Cutting mode

Hydraulic cutting

Cutter material

Cr12 mold steel

Length measurement

Encoder

Control mode

Mitsubishi PLC

Operating mode

Button + Mitsubishi Touch screen

Main motor power(kw)

5.5KW (Depend on final design)

Hydraulic station power

2.2 K W (Depend on final design)

Total power(kw)

7.7KW

Uncoiler's loading capacity

Max. Capacity: 5000kgs
(can be increased to be 10T)

Machine`s size

About 10.5 x 1.7 x 1.5m (Depend on final design)

Machine weight

About 9000kgs



Components of machine:


Decoiler

1set

Feeding & guiding device

1set

Main roll forming machine

1set

Pressing device

1set

Hydraulic cutting system

1set

Controlling system

1set

Run out table

1set




HANGZHOU ZHONGYUAN MACHINERY FACTORY
