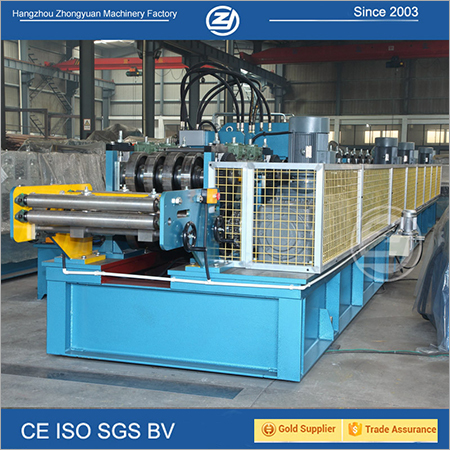

CZ Interchangeable Purlin Machine
Machine model:CZ Interchangeable Purlin Machine
Raw material:1.5-4.0mm GI steel coils
Punching style: stop to punch
Line speed: about15m/min.
Gross weight: 23000 kgs
Diameter of shaft for rollers: dia. 82mm
Punching head material: CR12 MOV. Heat treatment.
Cutting Blade: Cr12 MOV. Heat treatment. Guarantee 3 years usage life.
Machine Dimension: About 12.5X2.1x1.7 m
Controller: Mitsubishi PLC , converter and screen. Fully automatic running.
Workers required: two persons.
Warranty period :24 months
Technical data of CZ Purlin roll Forming Machine
Suitable Material:Cold-rolled steel strip and heat-treated galvanized steel strip
Thickness of raw material:1.5-4.0mm (235-345Mpa)
Size of C purlin 100-305mm adjustable (special size available)
Material of rollerCr12 mould steel being quenched treatment,HRC58-60
Material of cutter blade& punching dieCr12 mould steel with quenched treatment, HRC58-60
Material of shaftHigh quality 45 steel with heat treatment.Roller grinder milling.
Power RequirementMain motor power: 4X4 Kw(Depend on final design)
Hydraulic station power: 5.5Kw (Depend on final design)
Diameter of shaft for rollers82mm
Controlling systemMitsubishi PLC & converter
Quantity of rollersabout 15 stations for main rollers
Weight of machine About 23000KGS
Size of machineAbout 17.5mX2.1mx1.6m
Gearbox transmission system
Gearbox transmission system moves the line to ensure machine strong enough to run raw material thickness 3.0mm
