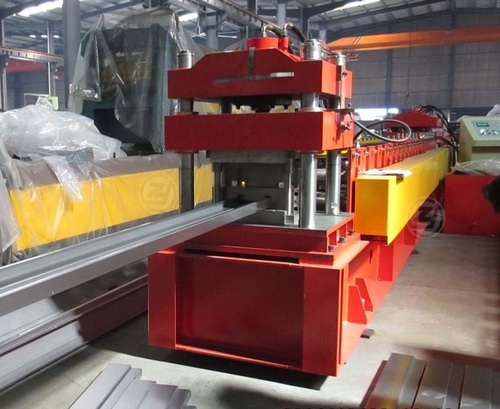

Metal Door Frame Making Machine
Product Details:
36000.00 - 110000.00 USD ($)/Set
X
Price And Quantity
- 1 Set
- 36000.00 - 110000.00 USD ($)/Set
Trade Information
- 20 Set Per Month
- 30 Days
Product Description
Having earned an immense goodwill in the market, we are engrossed in manufacturing, exporting and supplying the best quality Metal Door Frame Making Machine. Offered machine is utilized for making door that is highly demanded in residential as well as commercial places for security purpose. Our deft professionals used premium grade components and innovative techniques to manufacture this machine. Additionally, the provided Metal Door Frame Making Machine can be bought from us in different specifications at nominal prices.
Key Points:
- Simple to operate
- Low maintenace
- Less fuel consuming
- Robust construction
Feature
- Certificate: ISO 9001, CE,
- Lifetime services
- Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.
- Introduced Mitsubishi PLC with touch screen to machine control system.
- One worker operation (minimum)
- Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
- Product cut-to-length.
- Technician overseas installing and training available
Machine components:
Roll forming machine consists of uncoiler, coil sheet guiding device, main roll forming system , cutting device, Hydraulic station, PLC control system and support table.
Main technical parameters:
| Item | Specification | |
|
| Type | Color steel sheet or galvanized steel sheet |
| Material | Thickness(mm) | 0.7-1.2 |
|
| Yield strength(mpa) | 235 -345 |
| Roller material | 45#Chrome steel | |
| Forming speed(m/min) | About 15 (excluding in cutting time) | |
| Speed adjusting mode | AC Frequency | |
| Roller drive | Decelerating motor + Chain drive | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mold steel | |
| Length measurement | Encoder | |
| Control mode | Mitsubishi PLC | |
| Operating mode | Button + Mitsubishi Touch screen | |
| Main motor power(kw) | 5.5KW (Depend on final design) | |
| Hydraulic station power | 2.2K W (Depend on final design) | |
| Uncoiler's loading capacity | Max. Capacity: 3000kgs | |
