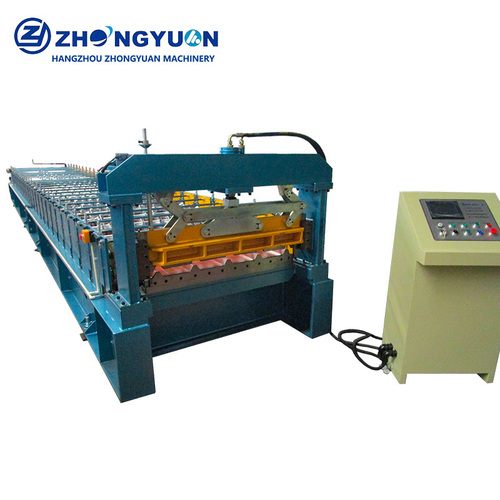

Profiled Metal Cladding Machine
Product Details:
- Computerized Yes
36000-110000 USD ($)/Set
X
Price And Quantity
- 1 Set
- 36000-110000 USD ($)/Set
- 36000.00 - 110000.00 USD ($)/Set
Product Specifications
- Yes
Trade Information
- 20 Set Per Year
- 90 Days
Product Description
Our company is able to cater the specific demands of clients by offering a wide gamut of Profiled Metal Cladding Machine. This machine is widely used for making metal cladding and wall cladding. Under experts direction, the provided machine is manufactured with precision using excellent quality components by our adept troop of technocrats. Besides, the provided Profiled Metal Cladding Machine can be purchased in different specifications from us.
Features:
- High speed functioning
- Noiseless operation
- Strong construction
- Easy to operate
Profiled Metal Cladding Machine
Raw Material:
- Material: color steel sheet
- Yield strength: 235Mpa
- Thickness: 0.4-0.7mm
Machine components:
- Decoiler (manual decoiler and hydraulic decoiler for option) : 1 set
- Feeding & guiding device : 1 set
- Main roll forming machine : 1 set
- Hydraulic cutting system : 1 set
- Controlling systemv1 set
- Run out table (auto. Stacker for option) : 2 pcs
Parameters
| Item | Specification |
| Roller material | 45#Chrome steel |
| Forming speed(m/min) | About 20-25 |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mold steel |
| Main motor power (kw) | 7.5 kw (Depend on final design) |
| Hydraulic station power | 2.2 kw (Depend on final design) |
| Uncoiler's loading capacity | Max. Capacity: 5000kgs (can be increased to be 10T) |
| Machine`s size | About 12 x 1.6 x 1.6m (Depend on final design) |
Process flow:
- Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting Product to Run Out Table
Packing:
- One 40feet container for loading one set machine with decoiler.
- Main machine body and decoiler is load naked (tighten to container with steel wire rope).
- Spare parts and operating tools are loading in tooling box.
Delivery : about 50 days after received advaced payment
