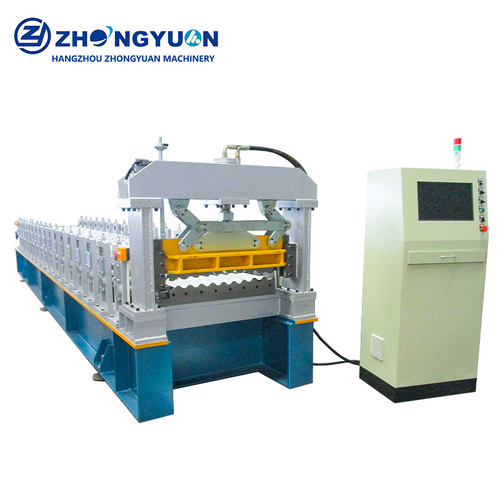

Roofing roll forming machine
Product Details:
- Computerized Yes
- Automatic Grade Automatic
- Control System PLC Control
- Rolling Speed 30-35 m/m
- Cutting System Hydraulic cutting
- Cutting Thickness 0.3-0.8 Millimeter (mm)
- Voltage 415 Volt (v)
- Supply Ability : 20 Set Per Year
22000-39000 USD ($)/Set
X
Price And Quantity
- 22000.00 - 39000.00 USD ($)/Set
- 22000-39000 USD ($)/Set
- 1 Set
Product Specifications
- Automatic
- 10.3*1.6*1.6 Meter (m)
- Hydraulic cutting
- 30-35 m/m
- 415 Volt (v)
- 9500 Kilograms (kg)
- 0.3-0.8 Millimeter (mm)
- PLC Control
- blue
- 12months
- Yes
Trade Information
- Ningbo
- Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)
- 20 Set Per Year
- 90 Days
- Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia
Product Description
In order to fulfill the demands of our customers, we are engaged in offering Metal Wall Forming Machine to our customers. This machine is manufactured with quality tested raw materials and latest technology in compliance with set industrial norms. Widely known for its features like sturdy design, low maintenance and long shelf life, this machine is widely demanded in the market. Moreover, our quality controllers test this Metal Wall Forming Machine under various parameters to ensure its flawlessness and quality. Our customers can avail this Metal Wall Forming Machine from us at market leading prices.
Features:
Features:
- Elegant design
- Perfect finish
- Excellent strength
- Longevity
Specification :
|
Suitable Material |
Q235 color steel sheet;0.3-0.7mm |
|
Working speed |
About 20m/min |
|
Power Requirement |
Main motor power: 7.5 Kw(Depend on final design) |
|
|
Hydraulic station power: 2.2 Kw(Depend on final design) |
|
Material of forming rollers |
No.45 steel, plated with chrome on surface. |
|
Material of cutter |
Cr12 mould steel with quench treatment, HRC58-60 |
|
Material of shaft |
High quality 45# steel, Dia. is 72mm. Roller grinder milling. |
|
Shaft diameter |
72mm |
|
Controlling system |
Mitsubishi PLC & converter |
|
Total weight of machine |
About 8500KGS |
|
Machine's size |
About 15m x 1.8m x 1.5m (Depend on final design) |
|
Technical parameter |
||
|
Item |
Specification |
|
|
|
Type |
Pre-painted steel coil & galvanized coils |
|
Thickness(mm) |
0.3-0.7 |
|
|
Yield strength(mpa) |
235-345 |
|
|
Roller material |
45#Chrome steel |
|
|
Forming speed(m/min) |
About 20-25 |
|
|
Output speed(m/min) |
12 |
|
|
Speed adjusting mode |
AC Frequency |
|
|
Roller drive |
Decelerating motor + Chain drive |
|
|
Cutting mode |
Hydraulic cutting |
|
|
Cutter material |
Cr12 mould steel |
|
|
Length measurement |
Encoder |
|
|
Control mode |
Mitsubishi PLC |
|
|
Operating mode |
Button + Mitsubishi Touch screen |
|
|
Main motor power(kw) |
5.5KW |
|
|
Total power(kw) |
7.7KW |
|
|
Components of machine |
||
|
Decoiler |
1set |
|
|
Feeding & guiding device |
1set |
|
|
Main roll forming machine |
1set |
|
|
Hydraulic cutting system |
1set |
|
|
Controlling system |
1set |
|
|
Output table |
2set s |
|
|
Process flow |
||
|
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – Stacking sheets |
||
